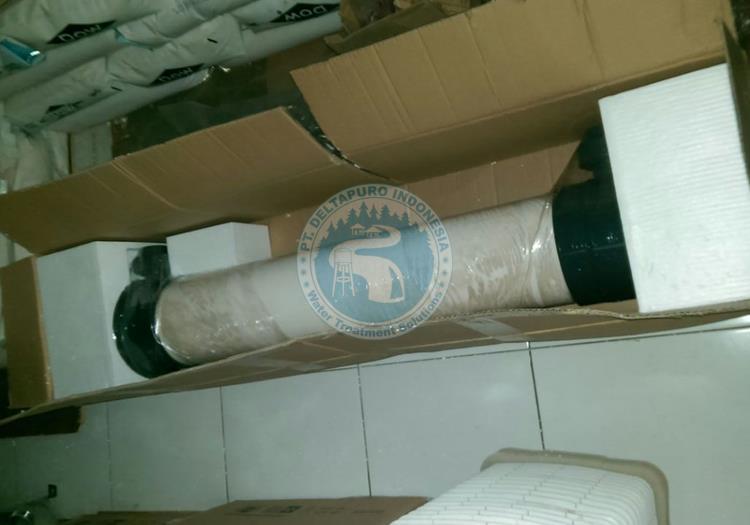

Spesifikasi Membrane UF-8040 Module :
- Merk : Hyna
- Type : HN-UF-200
- Membrane : PVC Alloy
- Housing Material : U-PVC
- Dimension : Ø 200 x 1475 mm
- Filtration Method : Inside - Out
- Membrane Area : 28 m2
- Filtrate Flux : 2500 L/H
- Flow Range : 1500 - 2500 L/H
Operation Conditions Membrane HN-UF-200 :
- Flow Congiguration : Standard inside-out, outside-in option
- Operation mode : Cross flow or dead end flow
- PH ranges, Operating : 2-11
- PH ranges, Cleaning : 2-12
- Temperature Range : 5 - 45℃
- Max. Feed Pressure : 0,3 Mpa
- Max. TMP Pressure : 0.2 Mpa
- Max. Backwash Pressure : 0.2 Mpa
- Max. Feed Turbidity : 50 NTU
- Max. Feed Particle Size : 100 µm
- Max. Feed TDS : 5 wt%
- Max. Chlorine Tolerance : 100 ppm
- Backwash Flux (m3/hr) : 1.5-2 times of filtrate flux
- Backwash Frequency : 20-60 minutes
- Backwash Duration : 30-60 seconds
- Disinfection Chemicals : NaOCI
- Cleaning Chemicals : HCI, NaOH, or Citric Acid
Performance :
- Filtrate Turbidity : < 0.1 NTU
- Filtrate SDI : < 2
- Bacterial removal : ≥ 99.99%
