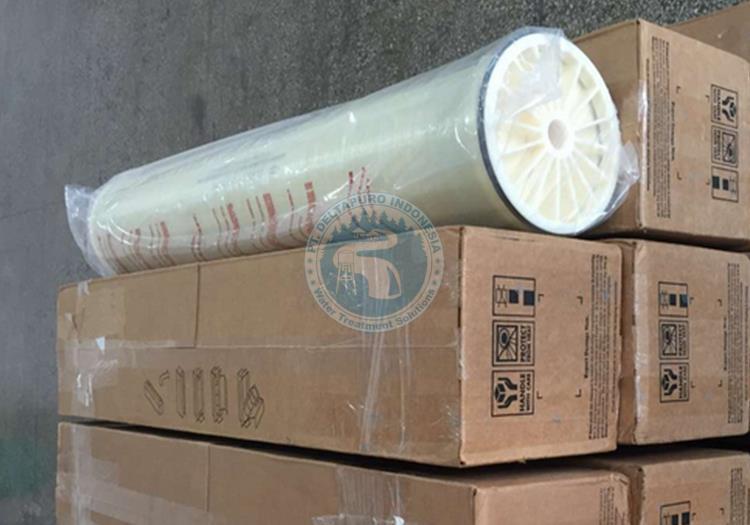

Product Specifications Membrane LG SW 400R :
- Active Membrane Area : 400 ft² (37 m²)
- Permeate Flow Rate : 9,000 gpd (34.1 m³/d)
- Stabilized Salt Rejection : 99.85%
- Minimum Salt Rejection : 99.7%
- Boron Rejection : 93%
Test Conditions :
- NaCl : 32,000 ppm
- Boron : 5 ppm
- Pressure : 800 psi (55 bar)
- Temperature : 25°C (77°F)
- pH : 8
- Recovery : 8%
- Permeate Flow Variation : +/-15%
Operating Specifications :
- Max. Operating Pressure : 600 psi (41 bar)
- Max. Chlorine Concentration : < 0.1 ppm
- Max. Operating Temperature : 1,200 psi (82.7 bar)
- pH Range, Continuous (Cleaning) : 2-11 (2-13)
- Max. Feedwater Turbidity : 1.0 NTU
- Max. Feedwater SDI (15 minutes) : 5.0
- Max. Feed Flow : 75 gpm (17 m³/h)
- Max. Pressure Drop for Each Element : 15 psi (1.0 bar)
Product Dimensions :
- Length : 1,016 mm (40 inch)
- Element O.D. : 200 mm (7.9 inch)
- Permeate Tube I.D. : 28.6 mm (1.125 inch)
- Active Membrane Area : 400 ft² (37 m²)
- Weight : 16.4 kg
- Feed Spacer : 28 or 34 mil
