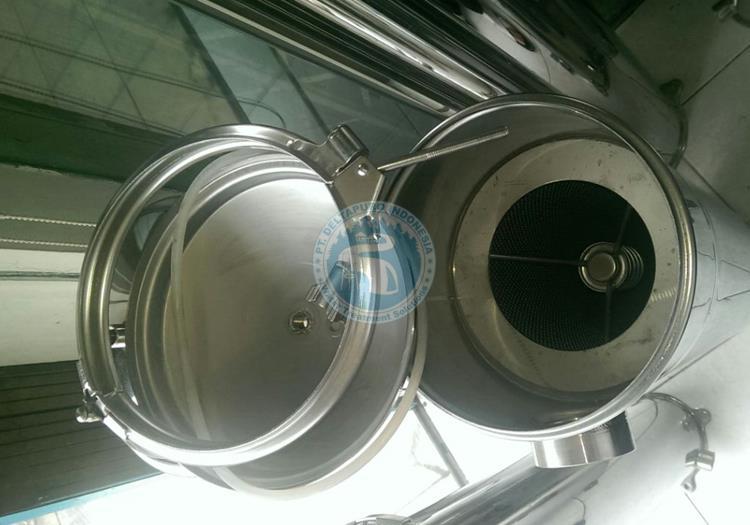

Housing Filter Bag 7 "x32" is a tube to put the filter bag measures 7 "x32" made of stainless steel. Housing Bag Filter 7 "x32" is designed to have the cover to open by hand for changing or replacing the filter bag. Use of the Bag Filter Housing 7 "x32" installed as a pre-filter before the water tank or after the raw water tank to completely filter out impurities in the water. Bag Filter Housing 7 "x32"can also replace the filtering process such as sand or micro-filter. Bag Filter Housing Stainless Steel 7 "x32" can be filled with various types of bag filters for various types of liquid to be filtered. is also equipped with a clamp on the lid to ensure there is no leakage in the filtering process.
Specifications Housing Filter Bag 7 "x32" :
- Bag Area: 0,50 m2
- Flow Rate: 40 m3 / hr
- Material: SS 304
- Thickness: 1.5 mm
- Gasket Material: PTFE
- Bag Reinforcement: SS Bag Filter Basket
- Filer Bag Size: 7 "x 32"
- Inlet / Outlet: 2 "inch
- Top Vent: 1/4" inch
- Pressure: 7 bar
- Weight: 19 kg
